Best spray pyrolysis Equipment Manufacturer In India
About Navson Technologies
NT manufacturers one of the best spray pyrolysis equipment available in India. The company develops the spray pyrolysis machines with every inch of detail that addresses the quality, functionality and handling. This provides the users of spray pyrolysis units, i.e. researchers working in scientific laboratories a straight forward and commercially viable method to prepare thin films by using precursor solutions.
What is spray pyrolysis?
NT’s spray pyrolysis machines have been designed for research laboratories into thin film development. The NT system helps users address various errors that are otherwise created during manual fabrication processes. It’s ergonomically designed chamber provides clean and healthy atmosphere that is best suited for all modern labs. In other words, the equipment offers optimal management of all parameters during the process. Starting with control of substrate temperature, to the concentration of solution, the spray rate, tempering treatments, etc. This is crucial to get the right properties of the fabricated thin films.
Spray Pyrolysis Machine Specifications
The NTPY01 comes with the following specifications.
- Actuator: Stepper motor
- Drive speed X axis: 10 – 800mm / sec
- Drive speed Y axis: 1 – 12mm / sec
- Sprayer traverse X – Y 200mm max
- Dimension: 150 x 150mm (Customizable size and shape)
- Temperature RT to 500° C (± 1°C)
- Power input 230V, 50Hz single phase

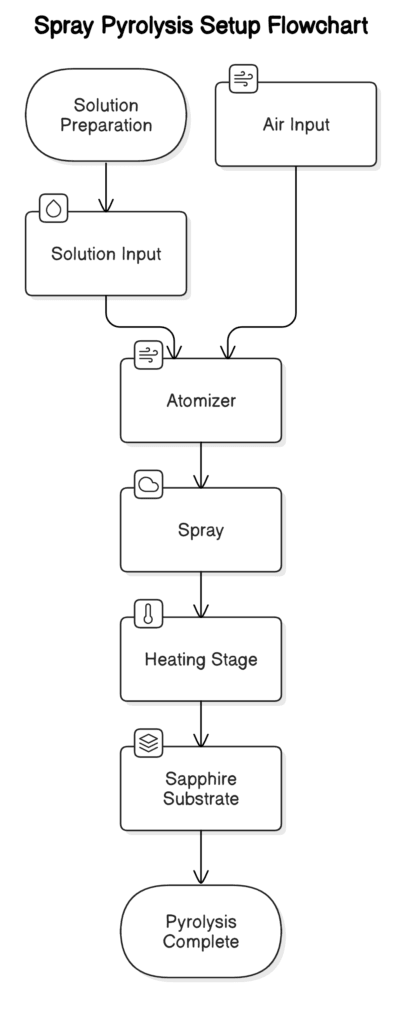

What’s A spray pyrolysis equipment?
Unlike the spin coating process, here the thin film is fabricated by spraying the precursor solution on the heated surface. This creates a reaction that results in the desired nanostructure chemical compound on the substrate.
The spray pyrolysis system is getting increasingly popular for its cost effectiveness, simplicity of use, high rate of deposition, and the ability to deposit on commercial scales.
Best Spray Pyrolysis Machine Cost?
Cost of popular laboratory spray pyrolysis equipment manufactured in India range from Rs. 2 Lacs and above. To know about the NTPY01 spray pyrolysis machine price, you can contact the manufacturer on website.
